Product Description:
Accurate measurement: The servo control system to ensure that the total can reach a constant position of the piston.
Variable speed filling: In the filling process, when close to the target filling volume to achieve a slow speed can be applied when filling, to prevent fluid overflow bottle pollution.
Adjustment convenient: Replacement of filling in the specifications only in the touch screen you can change the parameters, and all the filling for the first time changes in place.

Main Performance Parameter:

·Filling volume : 500ml~5000ml
·Suitable diameter of bottles : Ф60mm~Ф140mm
·Measure precision : ±1% (≤2500ml), ±0.5% (2500ml~5000ml)
·Production capacity : ≤2000 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 100 l/min
·Power supply : AC 220V/50Hz
·Power : 2Kw
·Machine weight : about 1000Kg
·Machine dimension (L×W×H) : 2000mm×1200mm×2300mm

•

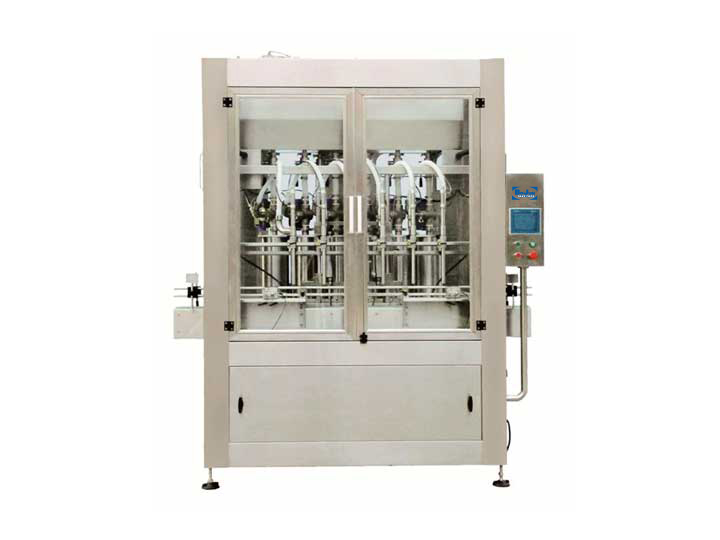

  BG5000-6D intelligent high viscosity filling machine
